January 6 2012

What Do You Need to Wall Spray or Glue Spray?

Barry Pendley Wall Spray

From the CM1500 and up, you are able to wall spray and glue spray cellulose, fiberglass and rockwool. You will need the items below:

water-tank copy

Water: Onsite or Carry with You

Many contractors carry a 120 gallon water tank for their water source. Some construction sites do not have running water available at the time of insulation. So, at times, it becomes necessary to bring your own water.

pump

Cool Machines Water Pump Assembly and Motor

Dave Krendl is a leader in the wall spray industry and developed an industrial-grade water pump assembly that is very portable. The pump is capable of reaching 500psi, which far exceeds the 200-300psi range required for wall spray. This pump works with water and glue. It can be used with the water tank shown above or an optional water hose adapter can be used to connect to on-site water.

cooltool copy

Cool Tool Wall Scrubber

This innovative, U-shape wall scrubber is the lightest wall scrubber on the market. The roller is made of a replaceable high-grade rubber that creates a very smooth surface. The roller has 2” extensions that allow for scrubbing all the way into the wall corners.

spraynozzle-hose copy

2 Jet Cool Machine Spray Nozzle

This two-jet nozzle has a teardrop design that forces the material to flow in a consistent, narrow pattern. With upright-angled jets, the water stream is exact and allows for a slight pre-dampening of the wall cavity to allow the starch to bind the material consistently in the wall cavity. This particular nozzle I pictured with brass jets. Stainless steel jets are available. If you are in an area where the water contains a high concentration of minerals in the water, then choose the stainless steel. Pictured with 1/4” high pressure hose 170 feet.

gluespray-hose copy

6 Jet Cool Machine Glue Spray Nozzle

When applying blown fiber with glue, more glue is required. This spray nozzle has 6 jets, you will gain the right amount of glue to material ratio. Blanks are available to reduce the number of jets to 4 if so desired. Pictured with 1/4” high pressure hose 170 feet.

wireless-remote-isolated

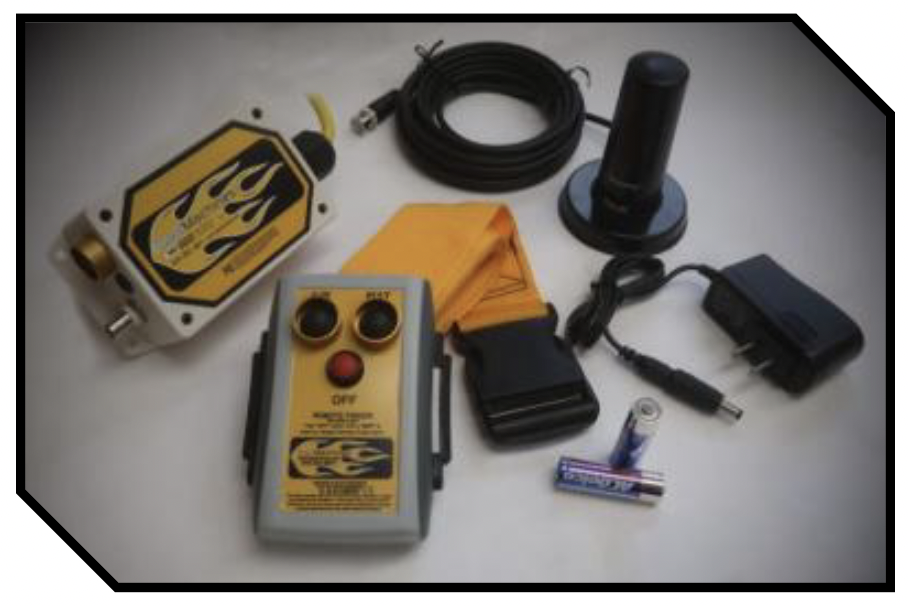

Wireless Remote System

Cool Machines comes with a 150’ corded remote control. With the material hose, water hose and corded remote, maneuverability does become an issue. The wireless remote system is very durable and has a very long range (with properly charged batteries).

hose-reels

Hose Reels

Protect your hose investment and make your jobs more efficient with a hose reel. These reels help reduce damaging crushing to the hose from people walking on it and from material falling on it during transport. A poorly stored hose can take 10 minutes of manipulation to unpack. Destructive hose kinks are virtually eliminated.
