Cool Machines offers a line-up of electric vacuums. These vacuums are capable with their gas counterparts… and have advantages over them.
What about horsepower and their gas equivalents?
When you compare the power to a gas vacuum, it is roughly comparable to double the number.
The Advantages of Electric Insulation Vacuums
Various Power Sources: You can run these off the standard homes. Either directly from the circuit panels or from a stove plugin or dryer plug.
No Exhaust: Contractors often find vacuuming needs within a building. Large commercial, industrial and residences need the unit inside their building. The CoolVac electric vacuums allow the flexibility of working inside because they do not use gas engines.
Very Low Maintenance: There is no need to change oil or mess with air filters or fuel. Just plug in and go. Since they are direct drive, there is no hassle with belts.
Low Noise: When you plugin into shore power, you will only hear the fan. No more noisy engines.
Greater Torque: These are direct drive fans and provide greater torque than their gas counterparts.

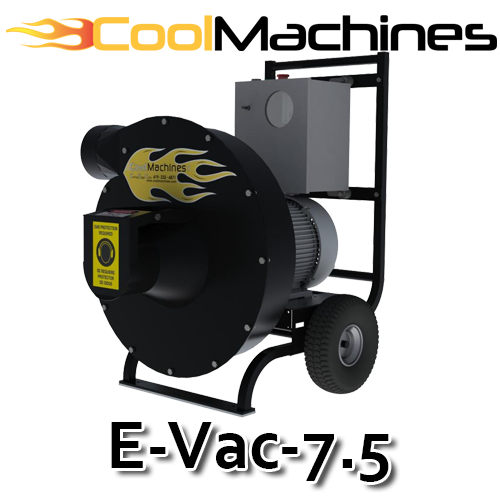

7.5HP Electric Vacuum
Comparable to 16hp gas vacuum
Uses: This is a daily worker and great entry point for the contractor who is expanding business. This will handle 1,000 to 2,000 sq foot spaces well.
Weight | 170 lbs (163 kg) |
LxWxH | in: 30" x 28" x 38" cm: 76.2 x 71.1 x 96.5 |
Blade Size (Height x Diameter) | in: 3" x ø20" cm: 7.62 x ø50..8 |
Vacuum Strength | 25" Water Column (0.062 bar) |
Airflow | 3200 CFM (5437m³/h |
Motor | 7.5 hp electric |
Power Requirements | Grid: 240 volt, 1 phase, 30amp grid Grid: or 480 volt 3 phase 10amp Generator: 10kw |
Inlet & Outlet | 6" / 15.25cm |
Warranty | 3 year (limited) |
Powder Coated | Yes |
Adjustable Fan Speed | Yes |
Hourmeter / Tachometer | Yes |
Wheels (Run Flat) | 10" / 25.4cm |
Chamber Material | 1/4" / .64cm AR400 |
Optional HD Chamber | 1/2" / 12.7mm AR400 |
Blade Material | 1/2" / 12.7mm AR500 |
Input.Output Safety Switches | Yes |
Noise Level | Very Low |

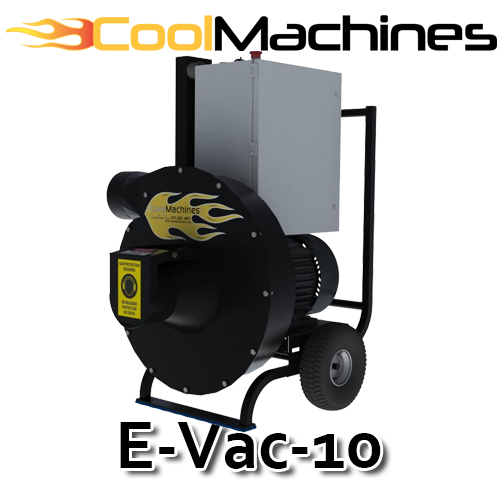

10HP Electric Vacuum
Comparable to 23hp gas vacuum
Uses: This is truly a daily workhorse and is used by many contractors who need performance. This will handle smaller fiberglass batts.
Weight | 205 lbs (163 kg) |
LxWxH | in: 30" x 28" x 38" cm: 76.2 x 71.1 x 96.5 |
Blade Size (Height x Diameter) | in: 4" x ø20" cm: 10.16 x ø50..8 |
Vacuum Strength | 27" Water Column (0.067 bar) |
Airflow | 3600 CFM (6116 m³/h) |
Motor | 10 hp electric |
Power Requirements | Grid: 240 volt 40 amp Grid: or 480 volt 3 phase 15amp Generator: 18kw 3-Phase |
Inlet & Outlet | 6" / 15.25cm |
Warranty | 3 year (limited) |
Powder Coated | Yes |
Adjustable Fan Speed | Yes |
Hourmeter / Tachometer | Yes |
Wheels (Run Flat) | 10" / 25.4cm |
Chamber Material | 1/4" / .64cm AR400 |
Optional HD Chamber | 1/2" / 12.7mm AR400 |
Blade Material | 1/2" / 12.7mm AR500 |
Input.Output Safety Switches | Yes |
Noise Level | Very Low |
20HP Electric Vacuum
Comparable to 27hp Gas Vacuum
Uses: A daily workhorse that can serve two extractors in the attic using 4″ hose. With the 8″ hose, you can remove fiberglass batts in two sections.
Weight | 828 lbs (376 kg) |
LxWxH | in: 43.25" x 33" x 48.25" cm: 109.9 x 83.8 x 122.6 |
Blade Size (Height x Diameter) | in: 4" x ø22" cm: 10.16 x ø55.9 |
Vacuum Strength | 30" Water Column (0.075 bar) |
Airflow | 4000 CFM (6796 m³/h) |
Motor | 20 hp electric |
Power Requirements | 240 volt 40 amp or 480 volt 3 phase 30amp or Generator: 22kw 3-Phase |
Inlet & Outlet | 8" (20.32cm) |
Warranty | 3 year (limited) |
Powder Coated | Yes |
Adjustable Fan Speed | Yes |
Hourmeter / Tachometer | Yes |
Wheels (Run Flat) | 10" / 25.4cm |
Chamber Material | 1/2" / .64cm AR400 |
Optional HD Chamber | 1/2" / 12.7mm AR400 |
Blade Material | 1/4" / 12.7mm AR500 |
Input.Output Safety Switches | Yes |
Noise Level | Very Low |
